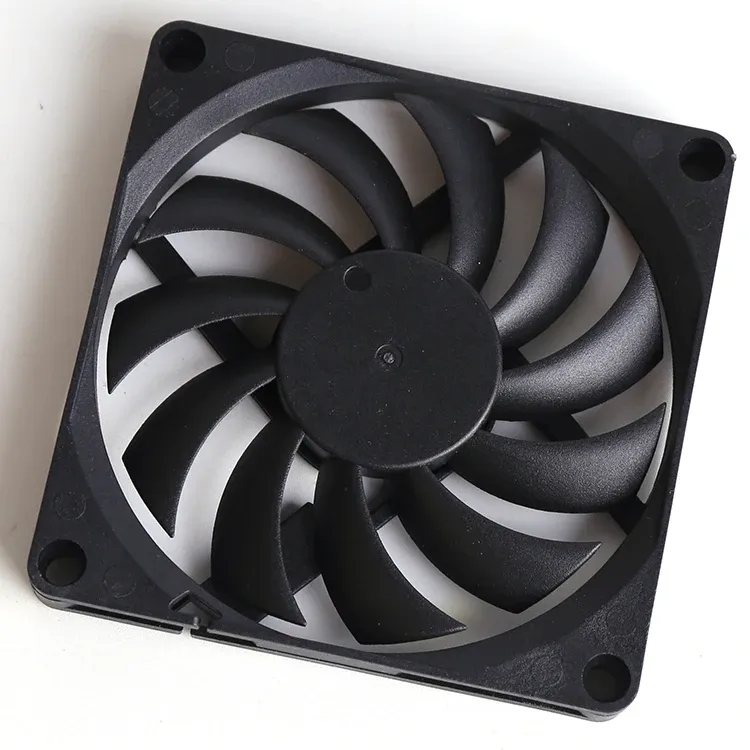

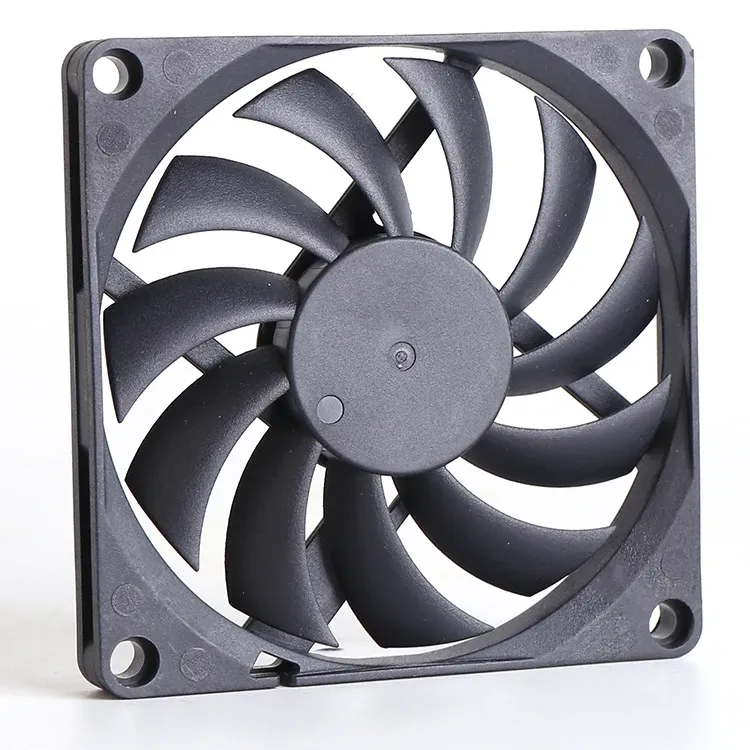

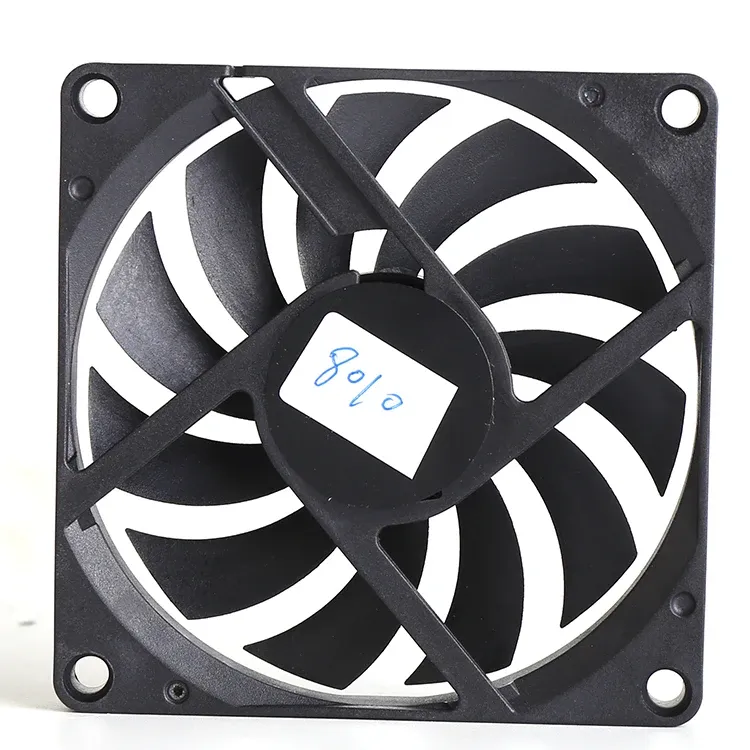

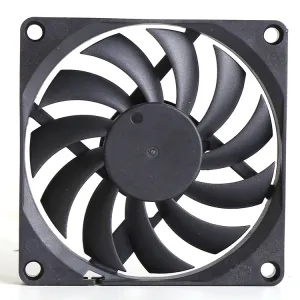

The 80x80x10mm slim DC Cooling Fan is developed for equipment where installation space is limited but continuous airflow is still required. Compared with standard 25mm or 38mm thickness fans, this ultra-thin design provides more flexibility for compact product structures.
It is suitable for computers, electronic devices, control systems, communication products, power modules, and other applications where a thin cooling solution is needed.

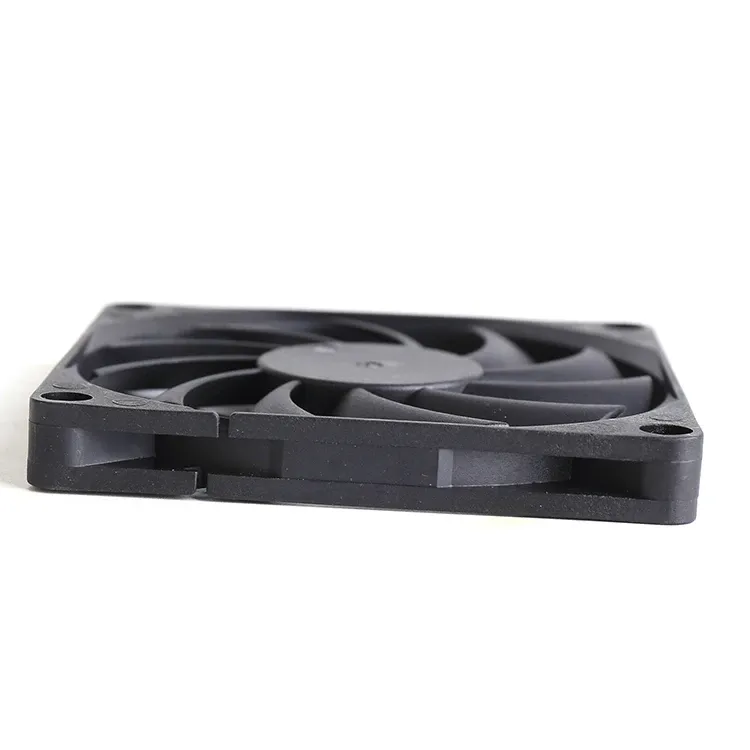

With only 10mm thickness, this fan can be installed in narrow spaces that cannot accommodate traditional cooling fans. The slim structure helps product designers create thinner and lighter equipment while maintaining necessary ventilation performance.
This makes the fan a practical choice for compact electronic products, embedded systems, small cabinets, and customized cooling structures.
Noise is an important factor in many consumer and industrial electronic products. This slim DC Fan is designed for applications where cooling performance needs to be balanced with operating sound.
With low-noise performance, it can help create a quieter working environment for computers, office equipment, testing devices, and other noise-sensitive products.
The brushless DC motor design helps provide stable rotation and efficient operation. Compared with traditional motor structures, brushless technology can reduce maintenance requirements and support longer working life.
The fan is suitable for equipment that requires continuous cooling support, especially electronic products operating for extended periods.
The fan uses PBT material for both frame and impeller structure, providing stable mechanical performance and reliable operation.
Combined with different bearing options, including 2 Ball Bearing, Long-life Sleeve Bearing, and FDB Bearing, the fan can be selected according to different application requirements.
Main Product Information
Speed | 2200- 3000RPM |
Airflow | 16- 26CFM |
Pressure | 77.40/ 8.06mmAq |
Noise | 30.8dBA |
Voltage | 12V- 48V |
Motor | DC Brushless external rotor motor |
Frame | PBT |
Impeller | PBT |
Bearing System | 2 Ball, Longlife Sleeve, FDB |
Insulation | Class A |
Operation Temperture | -10℃ - 70℃ |
Weight | 45g |
PC cooling systems
Electronic equipment
Communication devices
Control equipment
Power supply units
Embedded systems
Testing instruments
Small automation equipment
Compact industrial devices
OEM cooling projects
As electronic products become smaller and more integrated, thermal management becomes increasingly important. A suitable slim cooling fan helps improve internal airflow and prevent heat accumulation without increasing product size.
The 80x80x10mm fan provides a flexible cooling option for engineers who need a balance between compact design, airflow performance, and noise control.
XEONfan technology supports customized cooling solutions according to different product requirements.
Customization options may include voltage, cable length, connector type, bearing selection, speed configuration, airflow direction, label, and packaging.
For new product development, xeonfan Technology can assist customers in selecting a suitable cooling fan according to installation space, thermal requirements, and operating environment.
XEONFAN Technology specializes in AC and DC brushless cooling fans, Blower fans, motors, and customized heat dissipation solutions.
The company provides cooling solutions for computers, communication equipment, industrial equipment, new energy products, medical devices, home appliances, and other applications.
Through professional R&D and testing capabilities, XEONFAN Technology supports customers with product selection, performance verification, and customized cooling fan development.
A1: The fan thickness is 10mm, making it suitable for compact equipment with limited installation space.
A2: The fan size is 80x80x10mm.
A3: Yes. This slim DC fan is suitable for PC cooling systems, electronic devices, and other compact equipment requiring airflow.
A4: This model supports 12V–48V DC applications according to different equipment requirements.
A5: The main advantage is its 10mm ultra-thin structure, which allows installation in smaller spaces while maintaining stable cooling performance.
A6: Available options include 2 Ball Bearing, Long-life Sleeve Bearing, and FDB Bearing.
A7: Yes. XEONFAN Technology can customize voltage, connector, cable length, bearing type, speed, label, and packaging according to customer requirements.
A8: Yes. With low-noise performance, it is suitable for computers, office equipment, testing devices, and other noise-sensitive applications.
